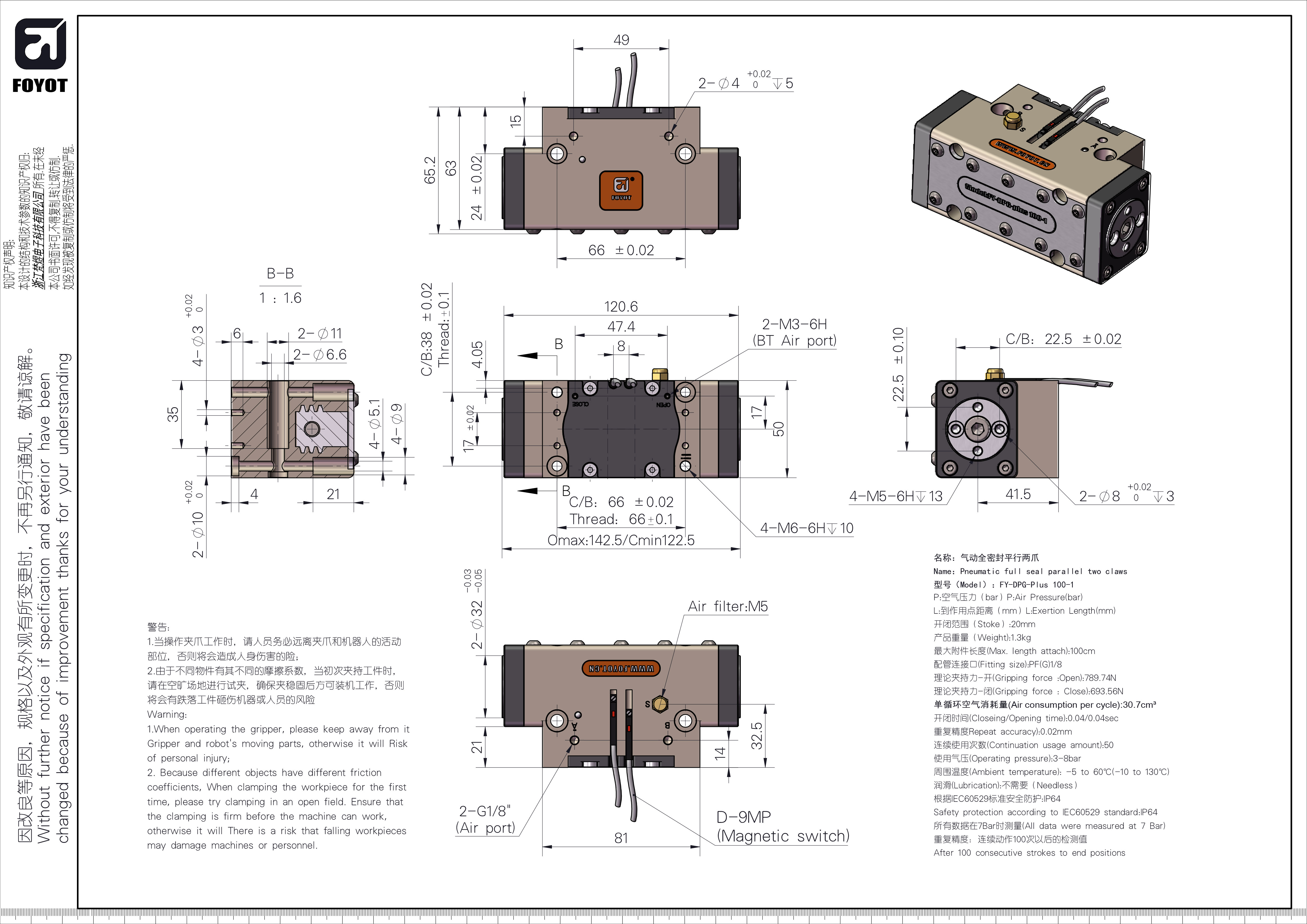

名稱：氣動全密封平行兩爪

Name:Pneumatic ful I seal paral lel two claws

型號(Mode I):FY-DPG-PIus100-1

P:空氣壓力P:Air Pressure(bar)

L:到作用點距離L:Exertion Length(mm)

開閉範圍(Stoke):20mm

產品重量(Veight):1.3kg

最大附件長度(Max.length attach):100cm

配管連接口(Fitting size):PF(G）1/8"

理論夾持力-開(Gripping force:Open):789.74N

理論夾持力-閉(Gripping force:Close):693.56N

單循環空氣消耗量(Air consumption per cycle):30.7cm³

開閉時間（Closeing./Opening time）:0.04/0.04sec

重復精度Repeat accuracy):0.02mm

連續使用次數(Continuation usage amount):50

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature):-5to60℃(-10to130℃)

潤滑Lubrication:)不需要(Needless)

根據EC60529標準安全防護：1P64

Safety protection according to IEC60529 standard:IP64

所有數據在7Bar時測量(All data were measured at7Bar)

重復精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
